TDA2050 32W Audio Power Amplifier
Product Code: AIT009TDA2050 32W Audio Power Amplifier
The TDA2050 is a Hi-Fi Audio Amplifier IC from ST Microelectronics with a maximum output power of 32W. It has a high operating voltage of 50V compared to the other TDAxxxx series amplifier ICS. It commonly used in class-AB audio amplifier and can drive upto 50W music power into a 4 ohm speaker.

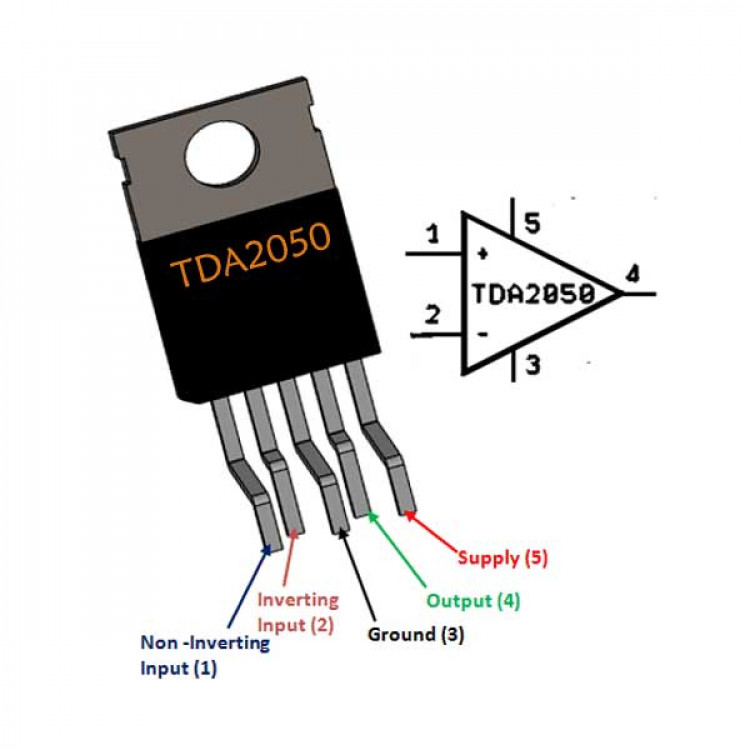

Pin Configuration
Pin Number | Pin Name | Description |
1 | Non – Inverting Input | Non inverting end (+) of Amplifier |
2 | Inverting Input | Inverting end (-) of Amplifier |
3 | Ground | Connect to the ground of the circuit |
4 | Output | This pin outputs the amplified signal |
5 | Supply Voltage | Supply voltage, Minimum 6V and Maximum 36V |
Features
- Low-frequency class AB amplifier most suited for audio amplification
- Can provide up to 50 Watts as output power
- Operating Voltage: -25V to +25V
- Output: 28Watts with 4Ω speaker
- Voltage Gain: 80dB
- Supply Voltage rejection: 45dB
- Short circuit and thermal protection is available
- Breadboard friendly
- Available in 5-pin TO220 package
The TDA2050 is a Hi-Fi Audio Amplifier IC from ST Microelectronics with a maximum output power of 32W. It has a high operating voltage of 50V compared to the other TDAxxxx series amplifier ICS. It commonly used in class-AB audio amplifier and can drive upto 50W music power into a 4 ohm speaker.
Pin Configuration
Pin Number | Pin Name | Description |
1 | Non – Inverting Input | Non inverting end (+) of Amplifier |
2 | Inverting Input | Inverting end (-) of Amplifier |
3 | Ground | Connect to the ground of the circuit |
4 | Output | This pin outputs the amplified signal |
5 | Supply Voltage | Supply voltage, Minimum 6V and Maximum 36V |
Features
- Low-frequency class AB amplifier most suited for audio amplification
- Can provide up to 50 Watts as output power
- Operating Voltage: -25V to +25V
- Output: 28Watts with 4Ω speaker
- Voltage Gain: 80dB
- Supply Voltage rejection: 45dB
- Short circuit and thermal protection is available
- Breadboard friendly
- Available in 5-pin TO220 package
Watch this video it will give you a clear idea about this product.
