2SA1943 Amplifier PNP Power Transistor_Toshiba
Product Code: AIT002Category: Amplifier IC/Transistor
2SA1943 Amplifier PNP Power Transistor_Toshiba
Order by Call
2SA1943 Amplifier PNP Power Transistor_Toshiba

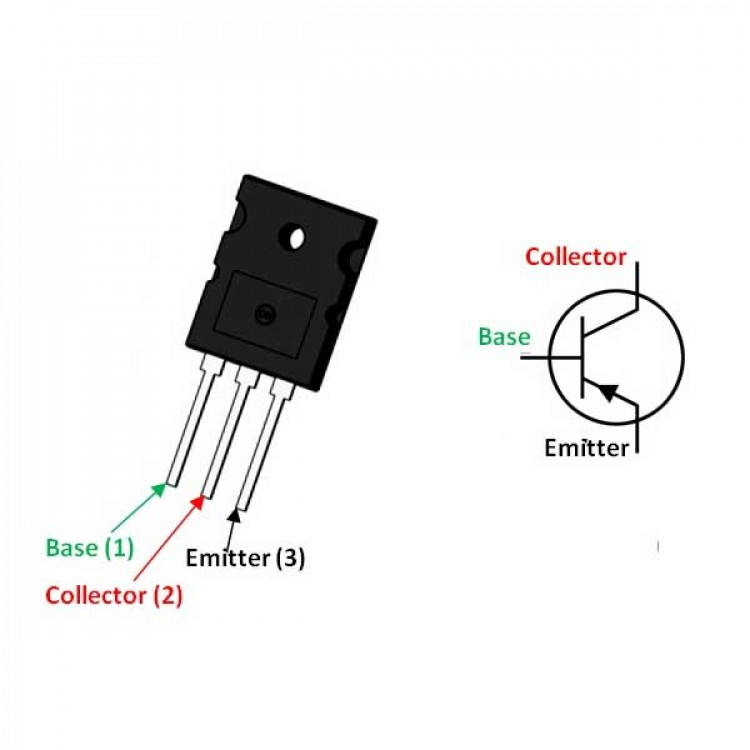

Pin Configuration
Pin Number | Pin Name | Description |
1 | Base | Controls the biasing of transistor, Used to turn ON or OFF the transistor |
2 | Collector | Current flows in through collector, normally connected to load |
3 | Emitter | Current Drains out through emitter, normally connected to ground |
Features
- Medium-power PNP Transistor
- DC Current Gain (hFE) 55 to 160
- Continuous Collector current (IC) is 15A
- Collector-Emitter voltage (VCE) is 230 V
- Collector-Base voltage (VCB) is 230V
- Emitter Base Voltage (VBE) is 5V
- Available in To-264 Package
2SA1943 Amplifier PNP Power Transistor_Toshiba
Pin Configuration
Pin Number | Pin Name | Description |
1 | Base | Controls the biasing of transistor, Used to turn ON or OFF the transistor |
2 | Collector | Current flows in through collector, normally connected to load |
3 | Emitter | Current Drains out through emitter, normally connected to ground |
Features
- Medium-power PNP Transistor
- DC Current Gain (hFE) 55 to 160
- Continuous Collector current (IC) is 15A
- Collector-Emitter voltage (VCE) is 230 V
- Collector-Base voltage (VCB) is 230V
- Emitter Base Voltage (VBE) is 5V
- Available in To-264 Package
Watch this video it will give you a clear idea about this product.
