2SC5200 Amplifier NPN Power Transistor_Toshiba

Product Code: AIT001
Category: Amplifier IC/Transistor

Brand: Toshiba_Japan

Discount: 0% OFF
Availability: Stock Available

199 TK.

/Pcs

Qty :

- +

Order by Call

Order By WhatsApp

The 2SC5200 is a high power NPN Transistor with a collector to emitter voltage of 230V and collector current of 30A. The transistor is available in TO-264 package and is commonly used Amplifier designs.

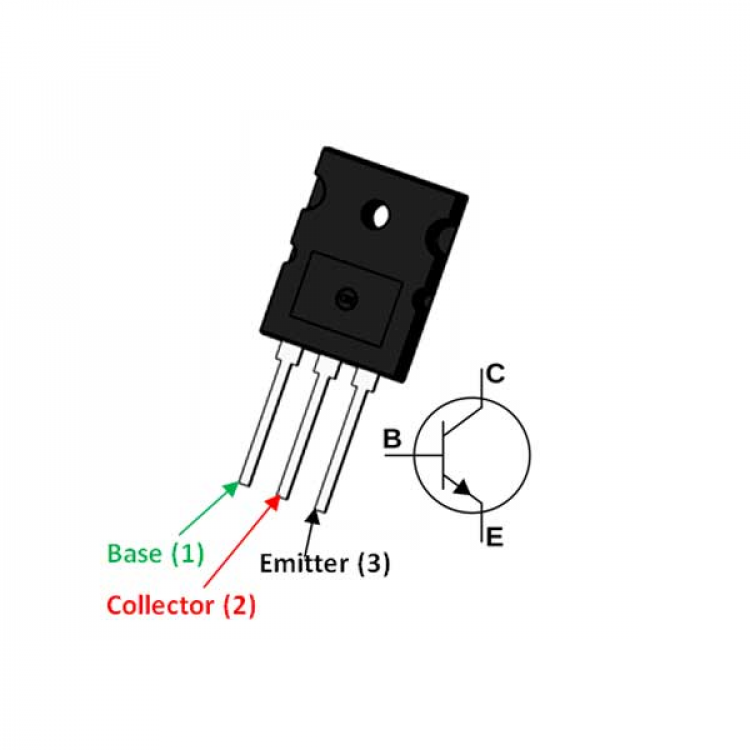

Pin Configuration

Pin Number	Pin Name	Description
1	Base	Controls the biasing of transistor, Used to turn ON or OFF the transistor
2	Collector	Current flows in through collector, normally connected to load
3	Emitter	Current Drains out through emitter, normally connected to ground

Features

High-power NPN Transistor
DC Current Gain (hFE) 55 to 160
Continuous Collector current (IC) is 15A
Collector-Emitter voltage (VCE) is 230 V
Collector-Base voltage (VCB) is 230V
Emitter Base Voltage (VBE) is 5V
Transition Frequency is 30MHz
Available in To-264 Package

>>Datasheet

Pin Configuration

Pin Number	Pin Name	Description
1	Base	Controls the biasing of transistor, Used to turn ON or OFF the transistor
2	Collector	Current flows in through collector, normally connected to load
3	Emitter	Current Drains out through emitter, normally connected to ground
