TDA2030_Audio Amplifier Ic.
Product Code: AIT010Category: Amplifier IC/Transistor
TDA2030_Audio Amplifier Ic.
The TDA2030 is a monolithic integrated circuit in
the Pentawatt® package, intended for use as a
low frequency class-AB amplifierThe TDA2030 provides high output current and
has very low harmonic and crossover distortion.

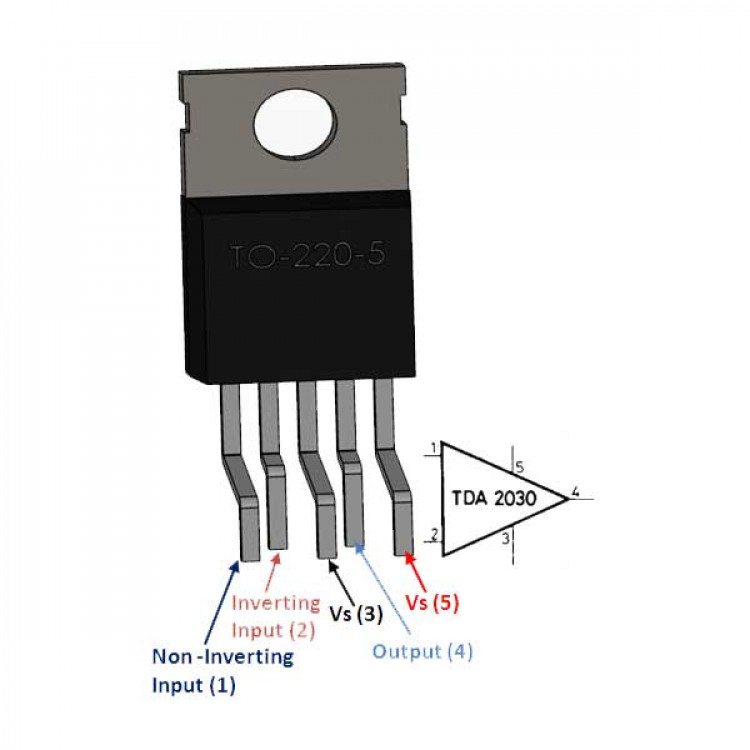

Pin Configuration:
Pin Number | Pin Name | Description |
1 | Non – Inverting Input | Non inverting end (+) of Amplifier |
2 | Inverting Input | Inverting end (-) of Amplifier |
3 | Vs (Ground) | Connect to the ground of the circuit |
4 | Output | This pin outputs the amplified signal |
5 | Vs (Power) | Supply voltage, Minimum 6V and Maximum 36V |
Features:
· Low frequency class AB amplifier most suited for audio amplification
· Can provide up to 20 Watts as output power
· Wide range of power supply from 6V to 36V
· Short circuit and thermal protection is available
· Breadboard friendly
· Available in 5-pin TO220 package
The TDA2030 is a monolithic integrated circuit in the Pentawatt® package, intended for use as a low frequency class-AB amplifierThe TDA2030 provides high output current and has very low harmonic and crossover distortion.
Pin Configuration:
Pin Number | Pin Name | Description |
1 | Non – Inverting Input | Non inverting end (+) of Amplifier |
2 | Inverting Input | Inverting end (-) of Amplifier |
3 | Vs (Ground) | Connect to the ground of the circuit |
4 | Output | This pin outputs the amplified signal |
5 | Vs (Power) | Supply voltage, Minimum 6V and Maximum 36V |
Features:
· Low frequency class AB amplifier most suited for audio amplification
· Can provide up to 20 Watts as output power
· Wide range of power supply from 6V to 36V
· Short circuit and thermal protection is available
· Breadboard friendly
· Available in 5-pin TO220 package
