Smoke Sensor Module (MQ-2)

Product Code: SNM007
Category: Sensor Modules
Model: MQ-2
Brand: China
Origin: China

Discount: 0% OFF
Availability: Stock Available

MQ2 is a very easy to use low cost semiconductor Gas sensor Module with analog and digital output.This module uses MQ2 Smoke & Flammable gas sensor as a gas sensing element.

150 TK.
/Pcs
- +
Order by Call
Documentation

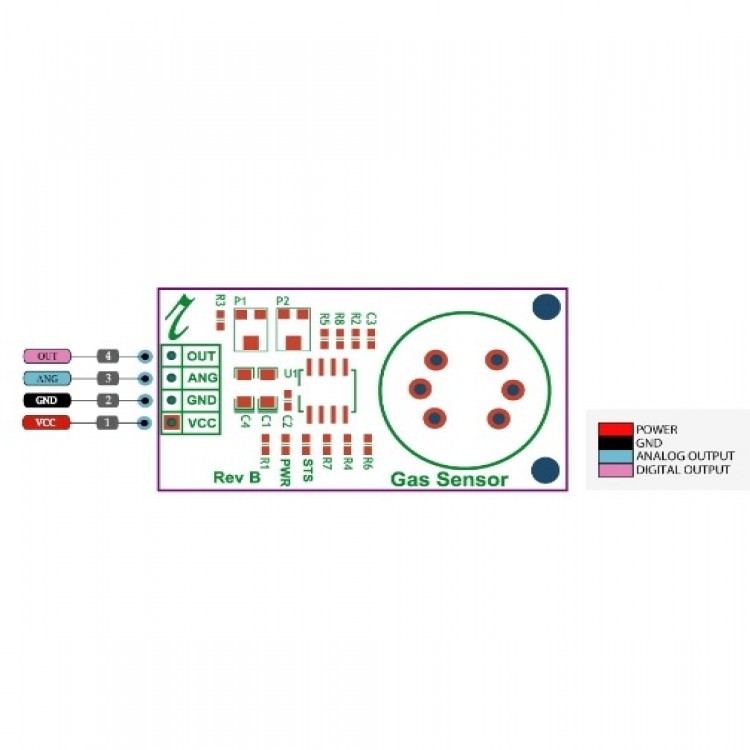

This is a very easy to use low cost semiconductor Gas sensor Module with analog and digital output. This module uses MQ2 Smoke & Flammable gas sensor as a gas sensing element. It requires no external components just plug in Vcc & ground pins and you are ready to go.

For Digital output the threshold value can be easily set by an on-board potentiometer.  Using this module you can easily interface MQ2 Smoke & Combustible gas Sensor to any Microcontroller, Arduino or even Raspberry Pi.

Since this Gas Sensor module is sensitive to smoke it can be used in for fire detection. MQ2 Gas Sensor is also sensitive to flammable/combustible gasses like LPG, Propane & Hydrogen.

Operating Voltage(VDC)

5

Analog Output Voltage

0V to 5V

Digital Output Voltage

0V or 5V (TTL Logic)

Preheat Duration(sec)

20

Dimensions in mm (LxWxH)

36x20x21

Weight (gm)

8

Shipment Weight

0.01 kg

Shipment Dimensions

4 x 4 x 4 cm

Documentation

This is a very easy to use low cost semiconductor Gas sensor Module with analog and digital output. This module uses MQ2 Smoke & Flammable gas sensor as a gas sensing element. It requires no external components just plug in Vcc & ground pins and you are ready to go.

For Digital output the threshold value can be easily set by an on-board potentiometer.  Using this module you can easily interface MQ2 Smoke & Combustible gas Sensor to any Microcontroller, Arduino or even Raspberry Pi.

Since this Gas Sensor module is sensitive to smoke it can be used in for fire detection. MQ2 Gas Sensor is also sensitive to flammable/combustible gasses like LPG, Propane & Hydrogen.

Operating Voltage(VDC)

5

Analog Output Voltage

0V to 5V

Digital Output Voltage

0V or 5V (TTL Logic)

Preheat Duration(sec)

20

Dimensions in mm (LxWxH)

36x20x21

Weight (gm)

8

Shipment Weight

0.01 kg

Shipment Dimensions

4 x 4 x 4 cm

Watch this video it will give you a clear idea about this product.
