R307 Optical Fingerprint Reader Module Sensor.
Product Code: SNM041Category: Sensor Modules
R307 sensor is fingerprint detection and verification super simple to implement with Arduino,and other microcontrollers.This is the updated latest model of the R305 FingerPrint Sensor.
Fingerprint sensor modules, like the one in the following figure, made fingerprint recognition more accessible and easy to add to your projects. This means that is is super easy to make fingerprint collection, registration, comparison and search.These modules come with FLASH memory to store the fingerprints and work with any microcontroller or system with TTL serial. These modules can be added to security systems, door locks, time attendance systems, and much more.
R307 Fingerprint Module consists of optical fingerprint sensor, high-speed DSP processor, high-performance fingerprint alignment algorithm, high-capacity FLASH chips and other hardware and software composition, stable performance, simple structure, with fingerprint entry, image processing, fingerprint matching, search and template storage and other functions.
Features
- Perfect function: independent fingerprint collection, fingerprint registration, fingerprint comparison (1: 1) and fingerprint search (1: N) function.
- Small size: small size, no external DSP chip algorithm, has been integrated, easy to install, less fault.
- Ultra-low power consumption: low power consumption of the product as a whole, suitable for low-power requirements of the occasion.
- Anti-static ability: a strong anti-static ability, anti-static index reached 15KV above.
- Application development is simple: developers can provide control instructions, self-fingerprint application product development, without the need for professional knowledge of fingerprinting.
- Adjustable security level: suitable for different applications, security levels can be set by the user to adjust.
- Finger touch sensing signal output, low effective, sensing circuit standby current is very low, less than 5uA.
Interface Description
The R307 fingerprint module has two interface TTL UART and USB2.0, USB2.0 interface can be connected to the computer; RS232 interface is a TTL level, the default baud rate is 57600 , can be changed, refer to a communication protocol ; can And microcontroller, such as ARM, DSP and other serial devices with a connection, 3.3V 5V microcontroller can be connected directly. Needs to connect the computer level conversion, level conversion note , embodiments such as a MAX232 circuit.
About the module's power supply
Fingerprint module board marked with 3.3V - 2 contacts short circuit, you can use DC3.3V .
Integrated image collecting and algorithm chip together, ALL-in-One
Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
Low power consumption, low cost, small size, excellent performance
Professional optical technology, precise module manufacturing technics
Good image processing capabilities, can successfully capture image up to resolution 500 dpi
Finger detection function.
Type: Optical
Sensor Life: 100 million times
Static indicators: 15KV
Backlight: Blue
Interface: USB2.0/UART(TTL logical level)
RS232 communication baud rate: 9600BPS~115200BPS changeable
Image Capture Surface 15×11(mm)
Verification Speed: 0.2 sec
Scanning Speed: 0.3 sec
Character file size: 256 bytes
Template size: 512 bytes
Storage capacity: 1000
Security level: 3 (1,2,3,4,5(highest))
False Acceptance Rate (FAR) :≤0.0001%
False Rejection Rate (FRR): ≤0.1%
Resolution 500 DPI
Voltage :4.2--6VDC (or 3.3V)
Working current: Typical ≤75mA
Matching Method: 1: N
Operating Envirement Temperature: -20 to 50 degrees
R307 fingerprint module size chart
3.3VDC power may be selected to supply when short ciucuit as the following drawing.
Caution: Operating carefully, and R307 will be damaged when wong connection.
- Integrated image collecting and algorithm chip together, ALL-in-One
- Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
- Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
- Low power consumption, low cost, small size, excellent performance
- Professional optical technology, precise module manufacturing technics
- Good image processing capabilities, can successfully capture image up to resolution 500 dpi
- Finger detection function
- Type: Optical
- Backlight: Blue
- Interface: USB2.0/UART(TTL logical level)
- RS232 Communication Baud Rate: 9600BPS~115200BPS changeable
- Verification Speed: 0.1 sec
- Scanning Speed: 0.2 sec
- Character File Size: 256 bytes
- Template Size:512 bytes
- Storage Capacity: 1000
- Security Level: 5 (1,2,3,4,5(highest)
- FRR (False Rejection Ratio): ≤1%
- FAR (False Acceptance Ratio): ≤0.0001%
- Resolution: 500 DPI
- Voltage: DC 4.2-6V
- Working Current: 50mA (Typical)
- Peak Current: 75mA
- Matching Method: 1 : N
- Operating Temperature: -20-50 ℃
- Image Capture Surface: 1.5×1.1mm
- Overall Size: 4.5x2.4x2cm/1.77x0.94x0.79"
- Quantity: 1 Set

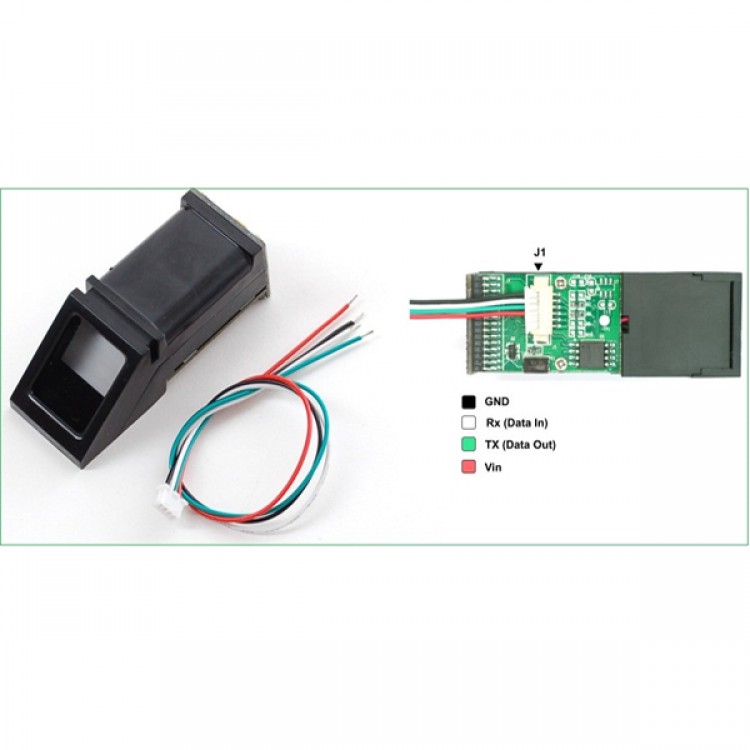

Pinouts :
Pin# Pin Name Details 1 5V Regulated 5V DC 2 GND Common Ground 3 TXD Data output - Connect to MCU RX 4 RXD Data Input - Connect to MCU TX 5 TOUCH Active Low output when there is touch on sensor by finger 6 3.3V Use this wire to give 3.3V to sensor instead of 5V USB Cable Connections are 5V/D+/D-/GND (Optional)
Watch this video it will give you a clear idea about this product.
