ACS712-5A Current Sensor Module

Product Code: SNM020
Category: Sensor Modules
Model: ACS-712-5A
Brand: China
Origin: China

Discount: 0% OFF
Availability: Stock Available

ACS712-5A Current Sensor Module

170 TK.
/Pcs
- +
Order by Call
Documentation

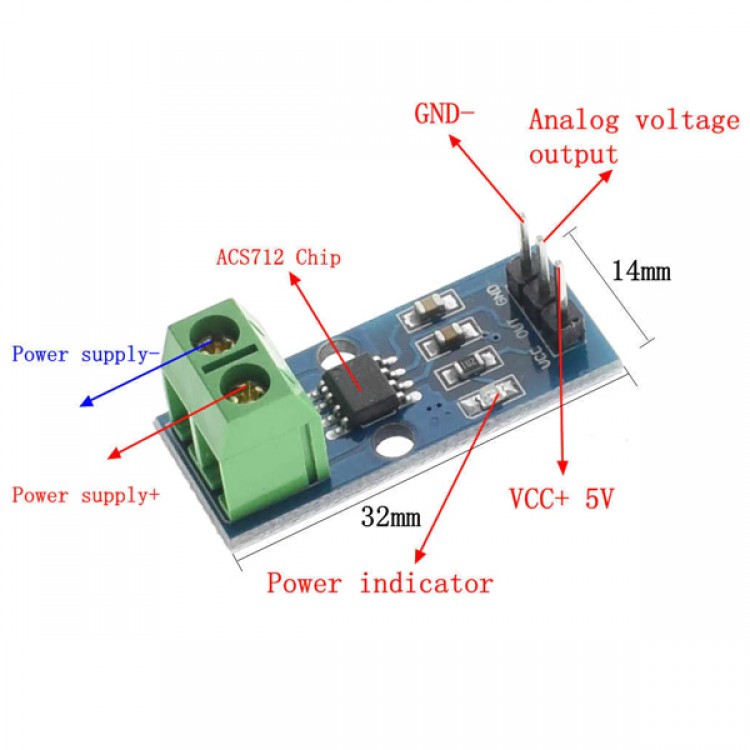

ACS712 Current Sensor Module – 5A


ACS712 Current Sensor Module – 5A can sense upto 5A of current flow. Sensing and controlling the current flow is a fundamental requirement in wide variety of applications, which includes over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.

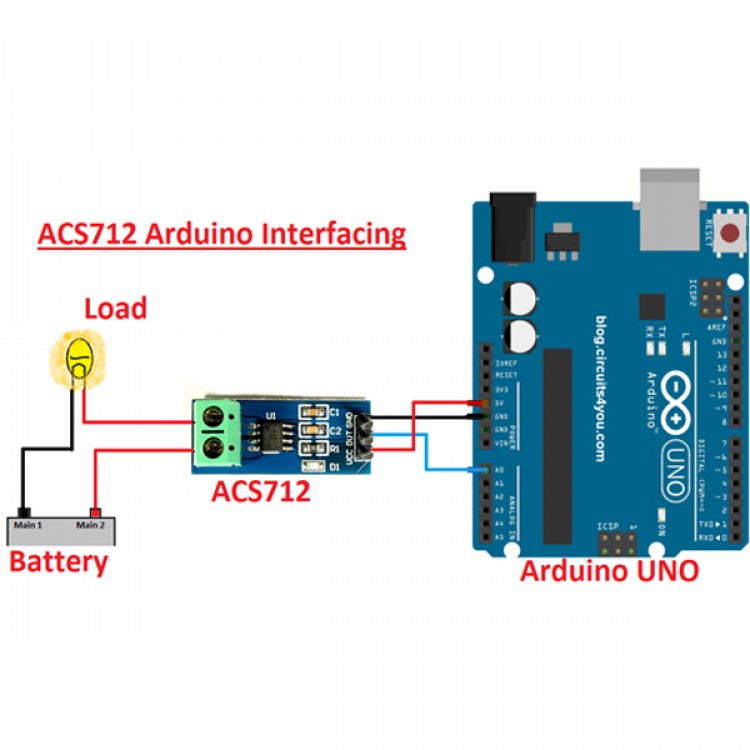

The ACS712 Current Sensor Module – 5A is based on ACS712 sensor, which can accurately detect AC or DC current. The maximum AC or DC that can be detected can reach 5A, and the present current signal can be read via analog I / O port of a microcontroller or an Arduino.



Documentation

ACS712 Current Sensor Module – 5A

Specification:

  • Supply Voltage: 4.5V ~ 5.5V DC
  • Measure Current Range: -5A ~ 5A
  • Sensitivity: 180mV/A ~190mV/A, Typical: 185mV/A

Watch this video it will give you a clear idea about this product.
