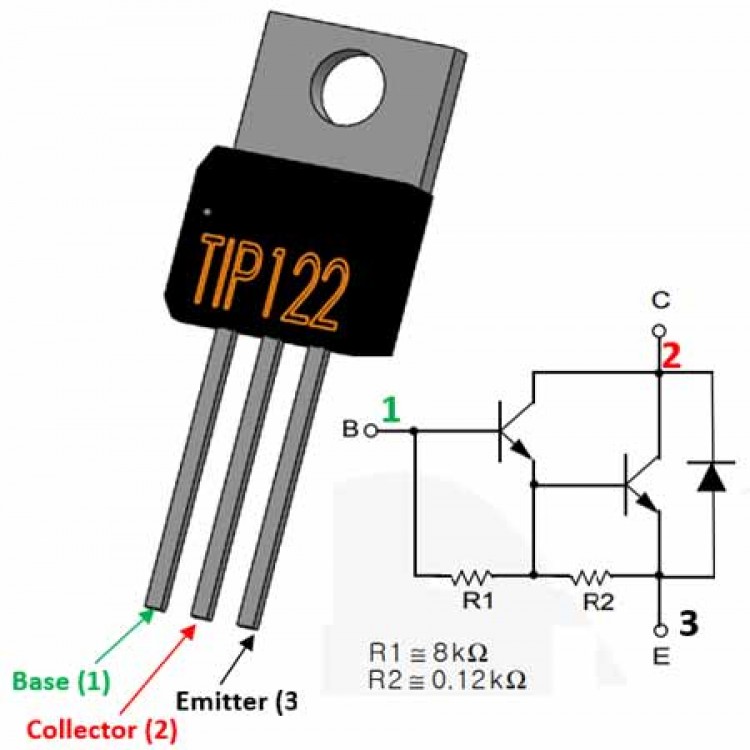

TIP122 NPN Transistor.
These are silicon Epitaxial-Base NPN power transistors in monolithic Darlington configuration mounted in Jedec TO-220 plastic package. They are intented for use in power linear and switching applications.
Features:
- Collector-Emitter Volt (Vceo): 100V
- Collector-Base Volt (Vcbo): 100V
- Collector Current (Ic): 5.0A
- hfe: 1,000 @ 500mA
- Power Dissipation (Ptot): 65W
- Type: NPN
Documentation
TIP122 NPN Transistor.
These are silicon Epitaxial-Base NPN power transistors in monolithic Darlington configuration mounted in Jedec TO-220 plastic package. They are intented for use in power linear and switching applications.
Features:
- Collector-Emitter Volt (Vceo): 100V
- Collector-Base Volt (Vcbo): 100V
- Collector Current (Ic): 5.0A
- hfe: 1,000 @ 500mA
- Power Dissipation (Ptot): 65W
- Type: NPN
Watch this video it will give you a clear idea about this product.
