Portable Advance Analog & Digital Logic Trainer Board.
Product Code: ZTS087Category: Electrical & Electronics Lab./EEE Lab

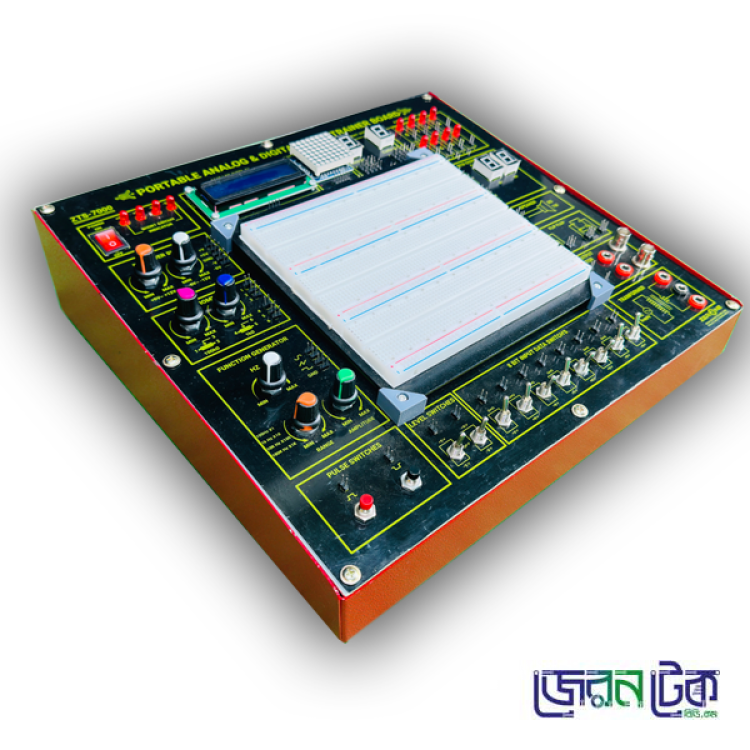

The ZTS-7000 Portable Advanced Analog & Digital Trainer Board is a high-level, high-quality training platform designed for comprehensive analog and digital electronics experiments.
Portable Advance Analog & Digital Logic Trainer Board.
Product
Specification and Details:
The
ZTS-7000 Portable Advanced Analog & Digital Trainer Board is a
high-level, high-quality training platform designed for comprehensive analog
and digital electronics experiments.
It
integrates all essential functions required for learning and practical
experimentation in a compact and portable system & has been upgraded in
accordance with the latest educational and technical requirements, ensuring an
effective hands-on learning experience for modern electronics education. It now
features integrated components such as a transformer, LCD display, and dot
matrix display also includes a removable
solder less breadboard it can be changed and
replaced for different purpose and can be connected with demonstration panel.
Therefore, it is very convenient for both teachers and students.
There's more here built-in DC power supply, function
generator, two pulse switches, speaker, and other essential modules.
Using
this trainer board, users/student can perform a wide range of experiments—from
fundamental applications like bridge rectifiers and logic gates to advanced
projects involving Arduino and robotics. These capabilities were not possible
with previously available trainer boards in the market. It really ideal for
educational laboratories, training institutes, and engineering students.
Specification:
|
Power Supply: Input: 220V
Input Section:
Function Generator: |
Output Section: Display: 16*2 LCD Display & 8*8 Dot-matrix
Displays. LED Output Transformer: Step Down 220V-(6-0-6V) Safety: Programmable digital short-circuit
indication with automatic cutoff and restoration system. User Manual Body Frame: MS Steel Frame Powder
Coating Color. Dimensions: (W x H x D) 330 x 90 x 310
mm (Approximate) |
Portable Advance Analog & Digital Logic Trainer Board.
Product Specification and Details:
The ZTS-7000 Portable Advanced Analog & Digital Trainer Board is a high-level, high-quality training platform designed for comprehensive analog and digital electronics experiments.
It integrates all essential functions required for learning and practical experimentation in a compact and portable system & has been upgraded in accordance with the latest educational and technical requirements, ensuring an effective hands-on learning experience for modern electronics education. It now features integrated components such as a transformer, LCD display, and dot matrix display also includes a removable solder less breadboard it can be changed and replaced for different purpose and can be connected with demonstration panel. Therefore, it is very convenient for both teachers and students.
There's more here built-in DC power supply, function generator, two pulse switches, speaker, and other essential modules.
Using this trainer board, users/student can perform a wide range of experiments—from fundamental applications like bridge rectifiers and logic gates to advanced projects involving Arduino and robotics. These capabilities were not possible with previously available trainer boards in the market. It really ideal for educational laboratories, training institutes, and engineering students.
Specification:
Power Supply: Input: 220V
Input Section:
Function Generator: | Output Section: Display: 16*2 LCD Display & 8*8 Dot-matrix Displays. LED Output Transformer: Step Down 220V-(6-0-6V) Safety: Programmable digital short-circuit indication with automatic cutoff and restoration system. User Manual Body Frame: MS Steel Frame Powder Coating Color. Dimensions: (W x H x D) 330 x 90 x 310 mm (Approximate) |
Watch this video it will give you a clear idea about this product.
