LM317 Adjustable Voltage Regulator_High Quality

Product Code: CVR007
Brand: China

Discount: 0% OFF
Availability: ( In Stock )

LM317 Adjustable Voltage Regulator_High Quality

Tk. 17
- +
Documentation

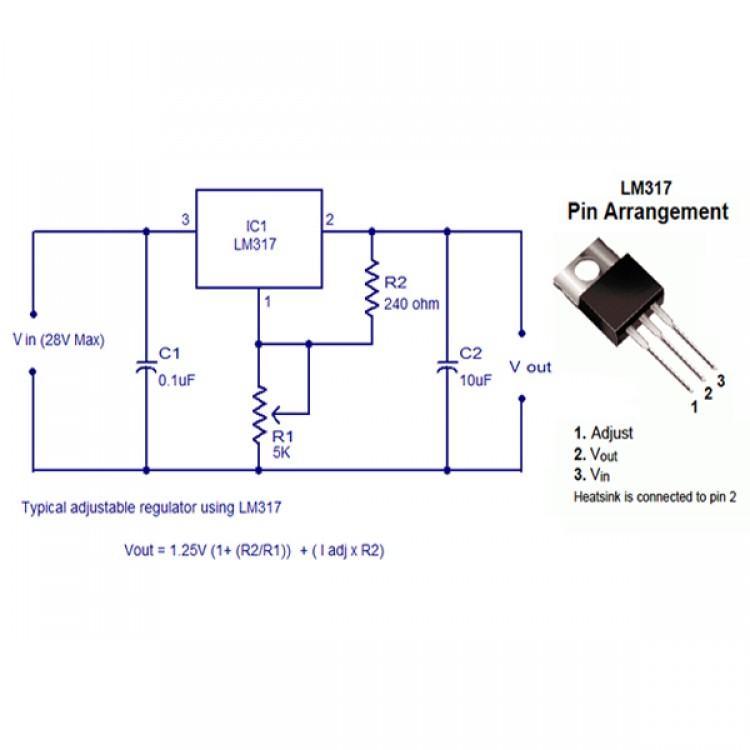

The LM317 device is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5 A over an output-voltage range of 1.25 V to 37 V. It requires only two external resistors to set the output voltage. The device features a typical line regulation of 0.01% and typical load regulation of 0.1%. It includes current limiting, thermal overload protection, and safe operating area protection. Overload protection remains functional even if the ADJUST terminal is disconnected.

Documentation

Features:

• Output Voltage Range Adjustable From 1.25 V to 37 V

• Output Current Greater Than 1.5 A

• Internal Short-Circuit Current Limiting

• Thermal Overload Protection

• Output Safe-Area Compensation

Watch this video it will give you a clear idea about this product.
