7805 5V Fixed Voltage Regulator
Product Code: CVR001Category: Voltage Regualtor
7805 5V Fixed Voltage Regulator
Order by Call
Documentation
Voltage sources in a circuit may have fluctuations resulting in not providing fixed voltage outputs. A voltage regulator IC maintains the output voltage at a constant value. 7805 IC, a member of 78xx series of fixed linear voltage regulators used to maintain such fluctuations, is a popular voltage regulator integrated circuit (IC). The xx in 78xx indicates the output voltage it provides. 7805 IC provides +5 volts regulated power supply with provisions to add a heat sink.
Documentation
7805 IC Rating
- Input voltage range 7V- 35V
- Current rating Ic = 1A
- Output voltage range VMax=5.2V ,VMin=4.8V

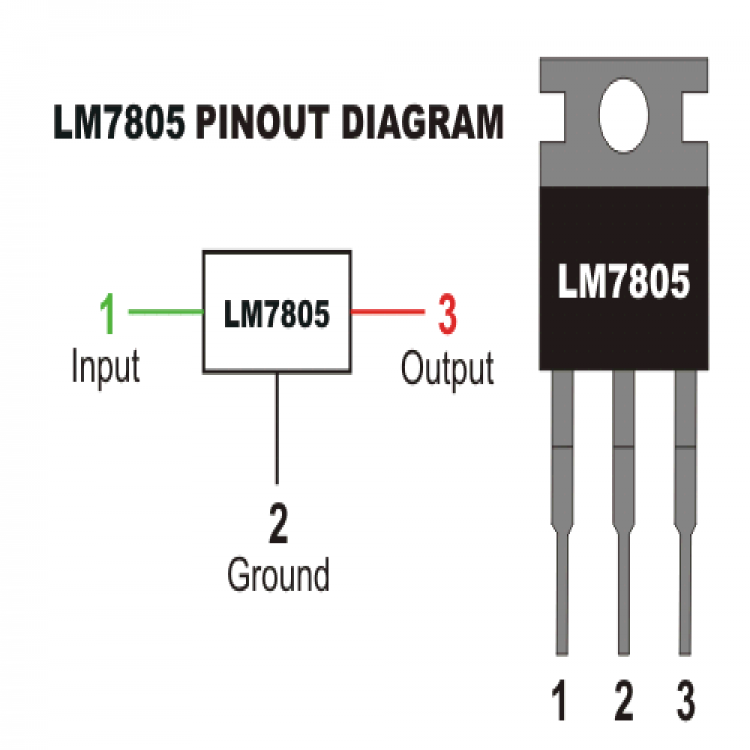

Pin Details of 7805 IC
| Pin No. | Pin | Function | Description |
| 1 | INPUT | Input voltage (7V-35V) | In this pin of the IC positive unregulated voltage is given in regulation. |
| 2 | GROUND | Ground (0V) | In this pin where the ground is given. This pin is neutral for equally the input and output. |
| 3 | OUTPUT | Regulated output; 5V (4.8V-5.2V) | The output of the regulated 5V volt is taken out at this pin of the IC regulator. |
Watch this video it will give you a clear idea about this product.
DocumentationRelated Product
In Stock
LM2596T LM2596 LM 2596 Fixed 5V 3A Voltage Regulator Buck IC Max Input 40V Max Output Fixed 5V Step Down Voltage Regulator IC 5 Pin TO-220-5 Switching Voltage Regulator.
