L298N H-Bridge Dual DC Motor Driver Module

Product Code: MDM002
Model: MDM002
Brand: China
Origin: China

Discount: 0% OFF
Availability: ( In Stock )

This L298N Motor Driver Module is a high power H-Bridge dual motor driver module for driving DC and Stepper Motors.

Tk. 170
- +

This L298N Motor Driver Module is a high power H-Bridge dual motor driver module for driving DC and Stepper Motors. This module consists of an L298 motor driver IC and a 78M05 5V regulator. L298N Module can control up to 4 DC motors, or 2 DC motors with directional and speed control.

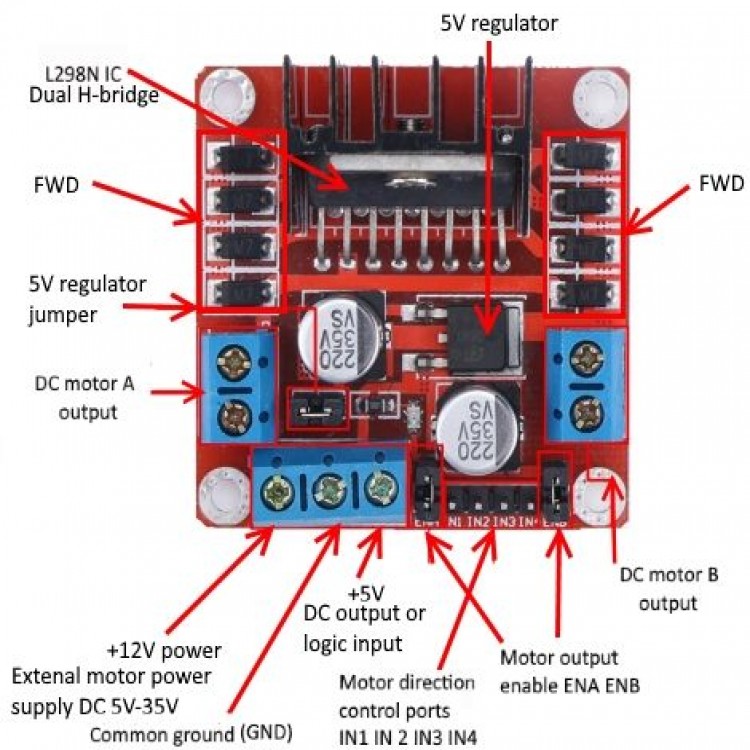

L298N Module Pinout Configuration

Pin Name

Description

IN1 & IN2

Motor A input pins. Used to control the spinning direction of Motor A

IN3 & IN4

Motor B input pins. Used to control the spinning direction of Motor B

ENA

Enables PWM signal for Motor A

ENB

Enables PWM signal for Motor B

OUT1 & OUT2

Output pins of Motor A

OUT3 & OUT4

Output pins of Motor B

12V

12V input from DC power Source

5V

Supplies power for the switching logic circuitry inside L298N IC

GND

Ground pin



Features & Specifications

  • Driver Model: L298N 2A
  • Driver Chip: Double H Bridge L298N
  • Motor Supply Voltage (Maximum): 46V
  • Motor Supply Current (Maximum): 2A
  • Logic Voltage: 5V
  • Driver Voltage: 5-35V
  • Driver Current:2A
  • Logical Current:0-36mA
  • Maximum Power (W): 25W
  • Current Sense for each motor
  • Heatsink for better performance
  • Power-On LED indicator

This L298N Motor Driver Module is a high power H-Bridge dual motor driver module for driving DC and Stepper Motors. This module consists of an L298 motor driver IC and a 78M05 5V regulator. L298N Module can control up to 4 DC motors, or 2 DC motors with directional and speed control.

L298N Module Pinout Configuration

Pin Name

Description

IN1 & IN2

Motor A input pins. Used to control the spinning direction of Motor A

IN3 & IN4

Motor B input pins. Used to control the spinning direction of Motor B

ENA

Enables PWM signal for Motor A

ENB

Enables PWM signal for Motor B

OUT1 & OUT2

Output pins of Motor A

OUT3 & OUT4

Output pins of Motor B

12V

12V input from DC power Source

5V

Supplies power for the switching logic circuitry inside L298N IC

GND

Ground pin



Features & Specifications

  • Driver Model: L298N 2A
  • Driver Chip: Double H Bridge L298N
  • Motor Supply Voltage (Maximum): 46V
  • Motor Supply Current (Maximum): 2A
  • Logic Voltage: 5V
  • Driver Voltage: 5-35V
  • Driver Current:2A
  • Logical Current:0-36mA
  • Maximum Power (W): 25W
  • Current Sense for each motor
  • Heatsink for better performance
  • Power-On LED indicator
