FTDI Module USB to TTL

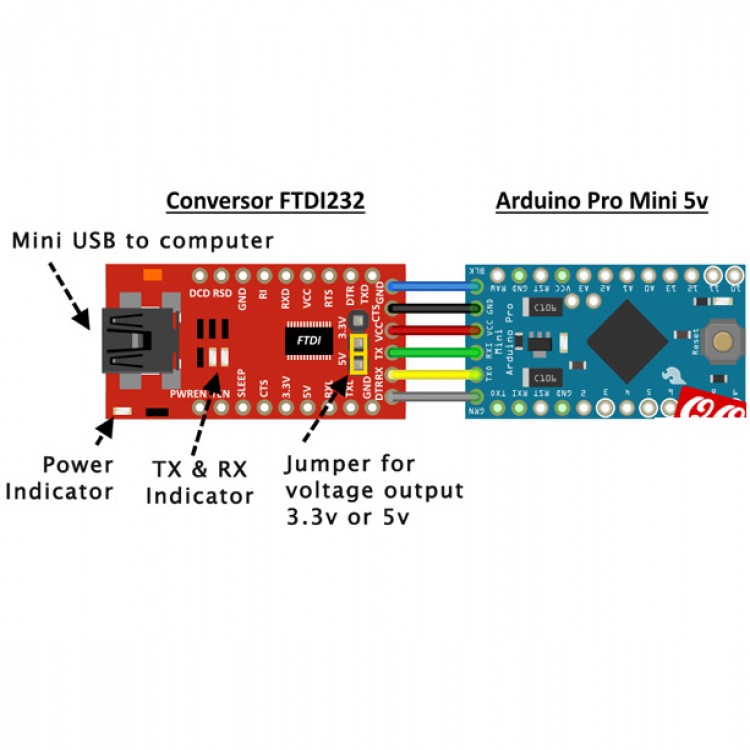

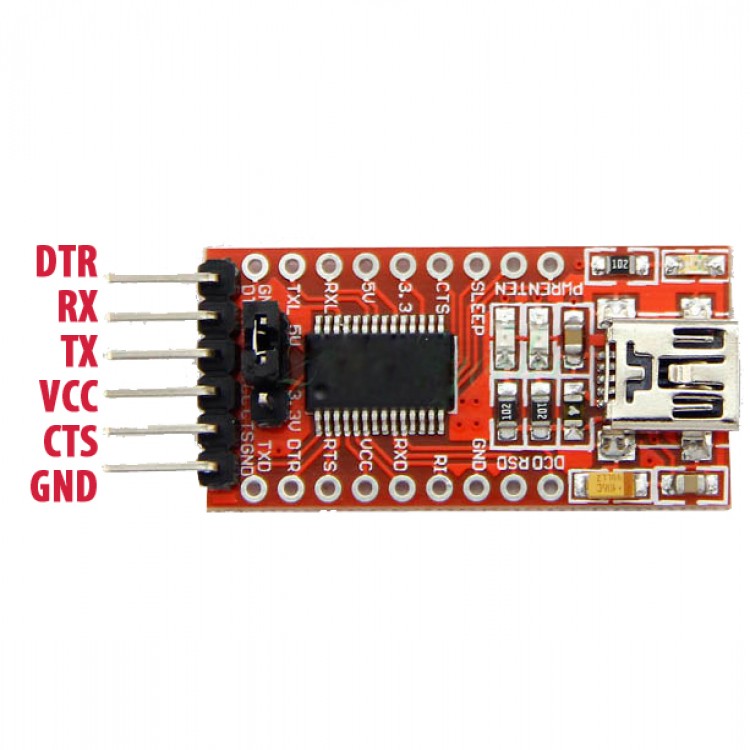

Adopts FT232RL chip of FTDI company; TTL/CMOS level; RXD / TXD indicator; USB powered, 5V / 3.3V for choice.Arduino Compatible FTDI Basic Breakout 5V 3.3V . This is a basic breakout board for the FTDI FT232RL USB to serial IC. The pinout of this board matches the FTDI cable to work with official Arduino and cloned 5V Arduino boards. It can also be used for general serial applications. The major difference with this board is that it brings out the DTR pin as opposed to the RTS pin of the FTDI cable. The DTR pin allows an Arduino target to auto-reset when a new Sketch is downloaded. This is a really nice feature to have and allows a sketch to be downloaded without having to hit the reset button. This board will auto reset any Arduino board that has the reset pin brought out to a 6-pin connector.

This board has TX and RX LEDs that make it a bit better to use over the FTDI cable. You can actually see serial traffic on the LEDs to verify if the board is working. This board was designed to decrease the cost of Arduino development and increase ease of use (the auto-reset feature rocks!). Our Arduino Pro boards and LilyPads use this type of connector. One of the nice features of this board is a Switch on the back of the board that allows the board to be configured to either 3.3V or 5V (both power output and IO level).

General
Brand	N/A
Model	FT232RL
Quantity	1Piece
Color	Red
Material	CCL + components
Specification
English Manual / Spec	Yes
Other Features
Other Features	A product for Arduino that works with official Arduino boards.

Dimensions & Weight
Dimensions	1.69 in x 0.79 in x 0.43 in (4.3 cm x 2 cm x 1.1 cm)
Weight	0.18 oz (5 g)

Packing List
1 x Module

Product performance:

1. Standard interface, compatible with all kinds of official Arduino controller

2. Original FT232 chips, stable performance

3. With a power supply, send, receive light, working condition be clear at a glance

4. With 3.3 V and 5 V power supply options

5. To do turn ordinary USB serial port using TTL module, download on STC microcontroller


Hardware introduction:

1. Adopts FTDI corporation FT232RL chips;

2. All lead to FT232RL chip signal port, TTL/CMOS level;

3. RXD/TXD transceiver communication indicator light;

4. USB power supply, optional interface 5 V or 3.3 V level (if you need any other level, can be directly on the VCC &gnd pin the target voltage).
