TYN612M SCR

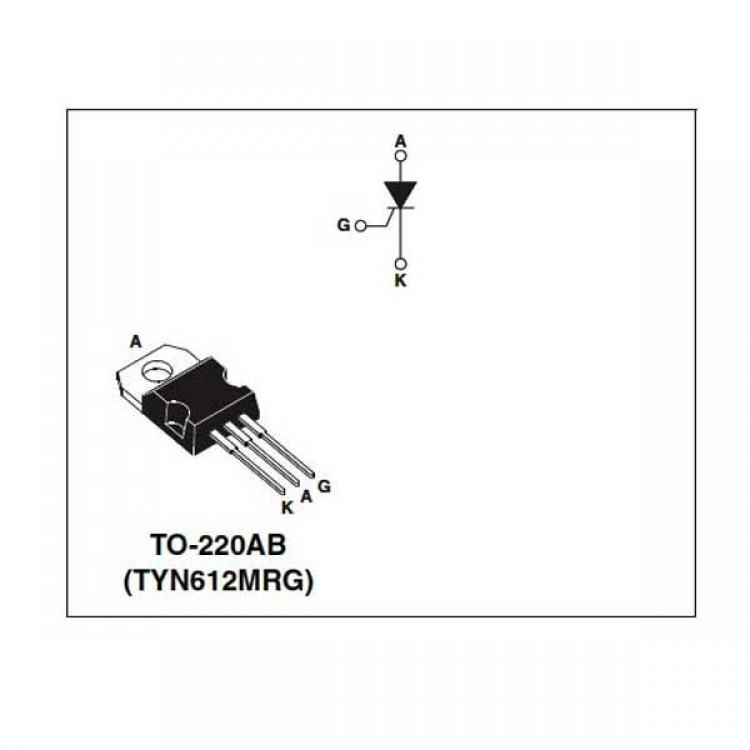

Pin Configuration
Pin NO. | Pin Name | Description |
1 | K | Cathode of Thyristor |
2 | A | Anode of Thyristor |
3 | G | Gate of Thyristor, used for triggering |
Features of TYN612- Thyristor
- On-state RMS current is 12 A
- Repetitive peak off-state voltage is 600 V
- Triggering gate current ranges from 5 mA to 15 mA
- Used as protection circuits, current limiting circuit and control circuits
- Provide optimized performance in a limited space
- Available in surface-mount and through-hole package
Technical Specification
- Dynamic resistance: 30mΩ
- I2t value for fusing: 98 A2S
- Maximum peak reverse gate voltage: 5v
- Peak gate current: 4A
- Operating temperature range: - 40 to + 125 °C
- Storage temperature: - 40 to + 150 °C
TYN612M SCR
Pin Configuration
Pin NO. | Pin Name | Description |
1 | K | Cathode of Thyristor |
2 | A | Anode of Thyristor |
3 | G | Gate of Thyristor, used for triggering |
Features of TYN612- Thyristor
- On-state RMS current is 12 A
- Repetitive peak off-state voltage is 600 V
- Triggering gate current ranges from 5 mA to 15 mA
- Used as protection circuits, current limiting circuit and control circuits
- Provide optimized performance in a limited space
- Available in surface-mount and through-hole package
Technical Specification
- Dynamic resistance: 30mΩ
- I2t value for fusing: 98 A2S
- Maximum peak reverse gate voltage: 5v
- Peak gate current: 4A
- Operating temperature range: - 40 to + 125 °C
- Storage temperature: - 40 to + 150 °C
Watch this video it will give you a clear idea about this product.
