LM317 Adjustable Voltage Regulator_High Quality
Product Code: CVR007Category: Voltage Regualtor
LM317 Adjustable Voltage Regulator_High Quality

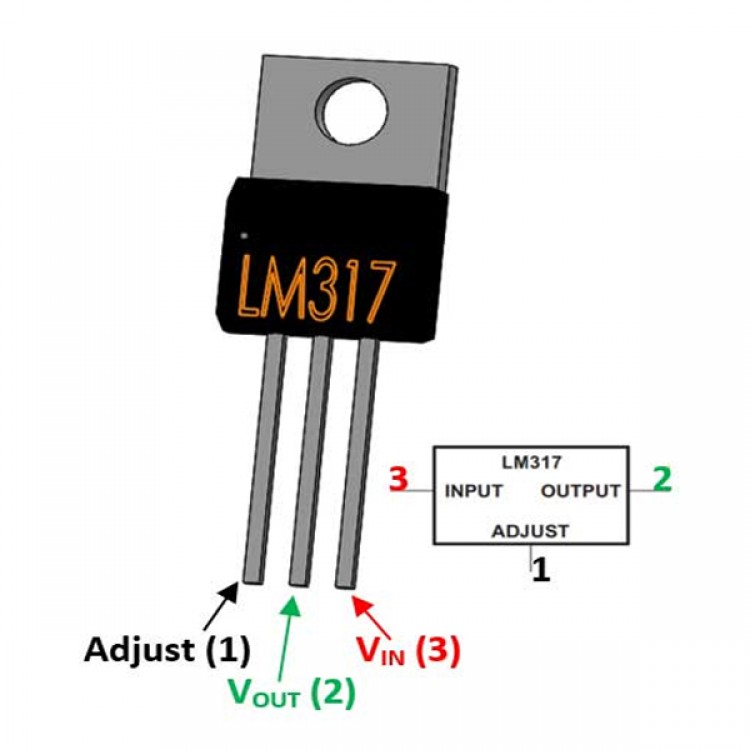

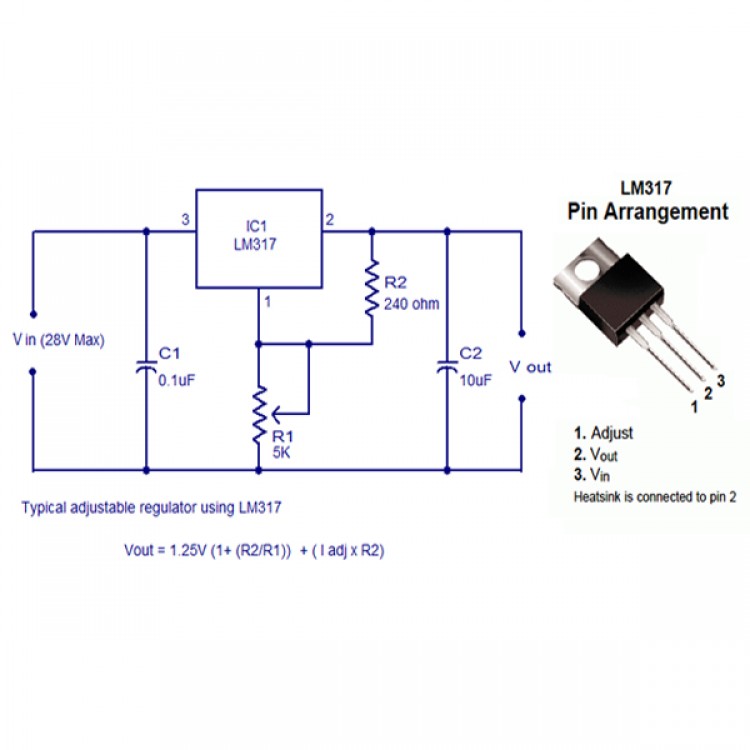

The LM317 device is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5 A over an output-voltage range of 1.25 V to 37 V. It requires only two external resistors to set the output voltage. The device features a typical line regulation of 0.01% and typical load regulation of 0.1%. It includes current limiting, thermal overload protection, and safe operating area protection. Overload protection remains functional even if the ADJUST terminal is disconnected.
Features:
• Output Voltage Range Adjustable From 1.25 V to 37 V
• Output Current Greater Than 1.5 A
• Internal Short-Circuit Current Limiting
• Thermal Overload Protection
• Output Safe-Area Compensation
Watch this video it will give you a clear idea about this product.
