DB3 DIAC Trigger Diode Bidirectional_2A 28-36V DO-35 Glass Package Diodes
Product Code: CMF016Category: MOSFET,IGBT,Diac,Triac,Optocouplers
DB3 DIAC Trigger Diode Bidirectional_2A 28-36V DO-35 Glass Package Diodes
DB3 DIAC Trigger Diode Bidirectional_2A 28-36V DO-35 Glass Package Diodes

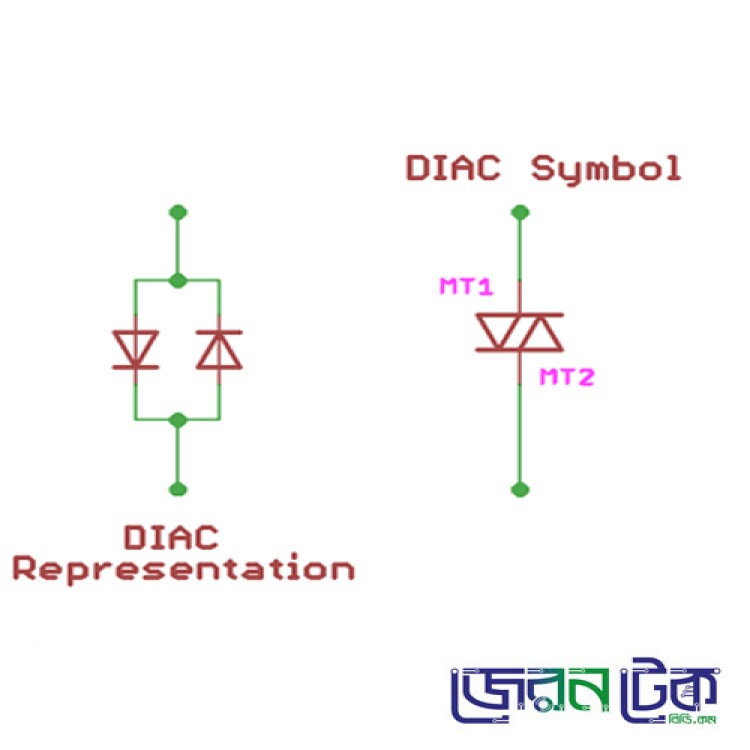

DB3 is a DIAC, functions as a trigger diode with a fixed voltage reference. The device is used in conjunction with Triac to simplify the gate control circuit and as a starting element in fluorescent bulb ballast.
Functioning as a trigger diode with a fixed voltage reference, the DB3 can be used in conjunction with triacs for simplified gate control circuits or as a starting element in fluorescent lamp ballasts.
Description. Functioning as a trigger diode with a fixed voltage reference, the DB3/DB4 series can be used in conjunction with triacs for simplified gate control circuits or as a starting element in fluorescent lamp ballasts.
Specification
- Origin: China
- Type: DIAC
Package Type: Through Hole - Package: DO-35
- Breakover Voltage: 28v to 36v
- Typical Breakover voltage: 32v
- Output voltage: 5v
- Breakover current: 50µA
- Leakage current: 10µA
- Peak current: 0.30A
- Rise time: 2µs
- Operating junction temperature: -40℃ to +125℃
- Storage temperature range: -40°c – +125°c
Applications:
- Functioning as a trigger diode with a fixed voltage reference, the DB3 can be used in conjunction with triacs for simplified gate control circuits or as a starting element in fluorescent lamp ballasts.
Package Include:
- 1 x DB3 DB-3 DIAC Trigger Diode Bidirectional 2A 28-36V DO-35 Glass Package Diodes
DB3 DIAC Trigger Diode Bidirectional_2A 28-36V DO-35 Glass Package Diodes
DB3 is a DIAC, functions as a trigger diode with a fixed voltage reference. The device is used in conjunction with Triac to simplify the gate control circuit and as a starting element in fluorescent bulb ballast.
Functioning as a trigger diode with a fixed voltage reference, the DB3 can be used in conjunction with triacs for simplified gate control circuits or as a starting element in fluorescent lamp ballasts.
Description. Functioning as a trigger diode with a fixed voltage reference, the DB3/DB4 series can be used in conjunction with triacs for simplified gate control circuits or as a starting element in fluorescent lamp ballasts.
Specification
- Origin: China
- Type: DIAC
Package Type: Through Hole - Package: DO-35
- Breakover Voltage: 28v to 36v
- Typical Breakover voltage: 32v
- Output voltage: 5v
- Breakover current: 50µA
- Leakage current: 10µA
- Peak current: 0.30A
- Rise time: 2µs
- Operating junction temperature: -40℃ to +125℃
- Storage temperature range: -40°c – +125°c
Applications:
- Functioning as a trigger diode with a fixed voltage reference, the DB3 can be used in conjunction with triacs for simplified gate control circuits or as a starting element in fluorescent lamp ballasts.
Package Include:
- 1 x DB3 DB-3 DIAC Trigger Diode Bidirectional 2A 28-36V DO-35 Glass Package Diodes
