LDR Module

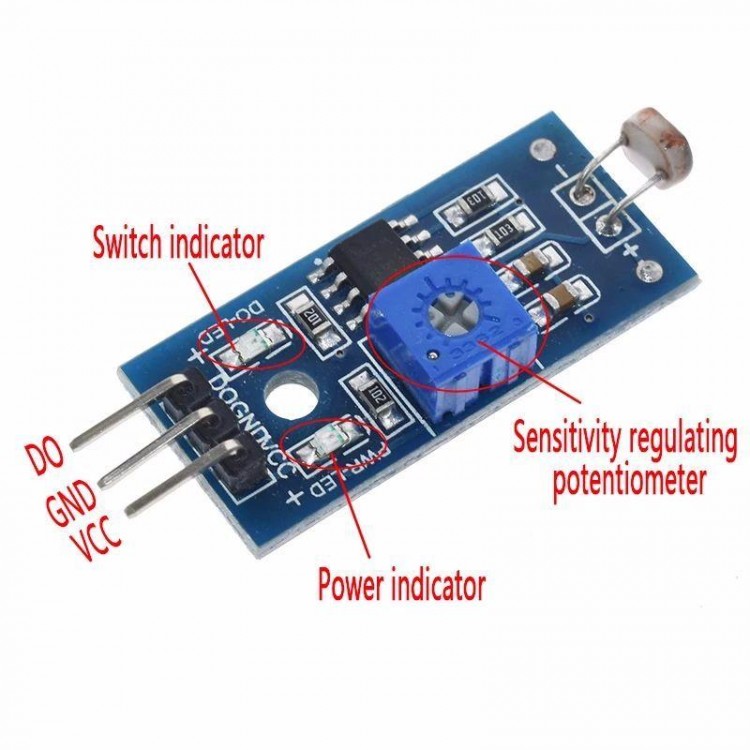

The Digital LDR Module is
used to detect the presence of light / measuring the intensity of light. The
output of the module goes high in the presence of light and it becomes low in
the absence of light. The sensitivity of the signal detection can be adjusted
using the potentiometer.
QUICK OVERVIEW
- LM393 based design
- Can detect ambient brightness and light intensity
- Adjustable sensitivity (via blue digital potentiometer adjustment)
- Output Digital – 0V to 5V, Adjustable trigger level from preset
- Output Analog – 0V to 5V based on light falling on the LDR
- LEDs indicating output and power
- Operating Voltage: 3.3V to 5V DC
- Operating Current: 15m
Operating Voltage(VDC) | 3.3 to 5 |
Operating Current(mA) | 15 |
Length (mm) | 32 |
Width (mm) | 14 |
Height (mm) | 8 |
Weight (gm) | 3 |
Shipment Weight | 0.085 kg |
Shipment Dimensions | 4 x 3 x 2 cm |
Watch this video it will give you a clear idea about this product.
