C828 NPN Transistor

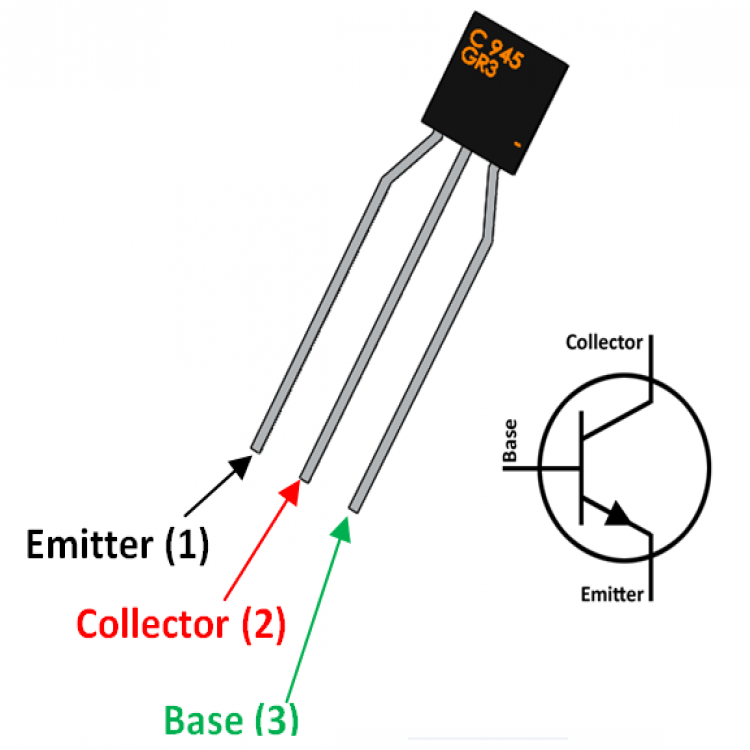

Pin Description
Pin Number | Pin Name | Description |
1 | Emitter | Current Drains out through emitter, normally connected to ground |
2 | Collector | Current flows in through collector, normally connected to load |
3 | Base | Controls the biasing of transistor, Used to turn ON or OFF the transistor |
Features
- High frequency amplifier NPN Transistor
- Current Gain (hFE) is 70 to 700 (high linearity)
- Continuous Collector current (IC) is 150mA
- Collector-Emitter voltage (VCEO) is 50 V
- Collector-Base voltage (VCB0) is 60V
- Emitter Base Voltage (VBE0) is 5V
- Transition Frequency is 150MHz
- Available only in To-92 Package
C828 NPN Transistor
Pin Description
Pin Number | Pin Name | Description |
1 | Emitter | Current Drains out through emitter, normally connected to ground |
2 | Collector | Current flows in through collector, normally connected to load |
3 | Base | Controls the biasing of transistor, Used to turn ON or OFF the transistor |
Features
- High frequency amplifier NPN Transistor
- Current Gain (hFE) is 70 to 700 (high linearity)
- Continuous Collector current (IC) is 150mA
- Collector-Emitter voltage (VCEO) is 50 V
- Collector-Base voltage (VCB0) is 60V
- Emitter Base Voltage (VBE0) is 5V
- Transition Frequency is 150MHz
- Available only in To-92 Package
