6 Channel Digital Servo Tester & Controller.
Product Code: MDM015Category: Motor Driver Modules

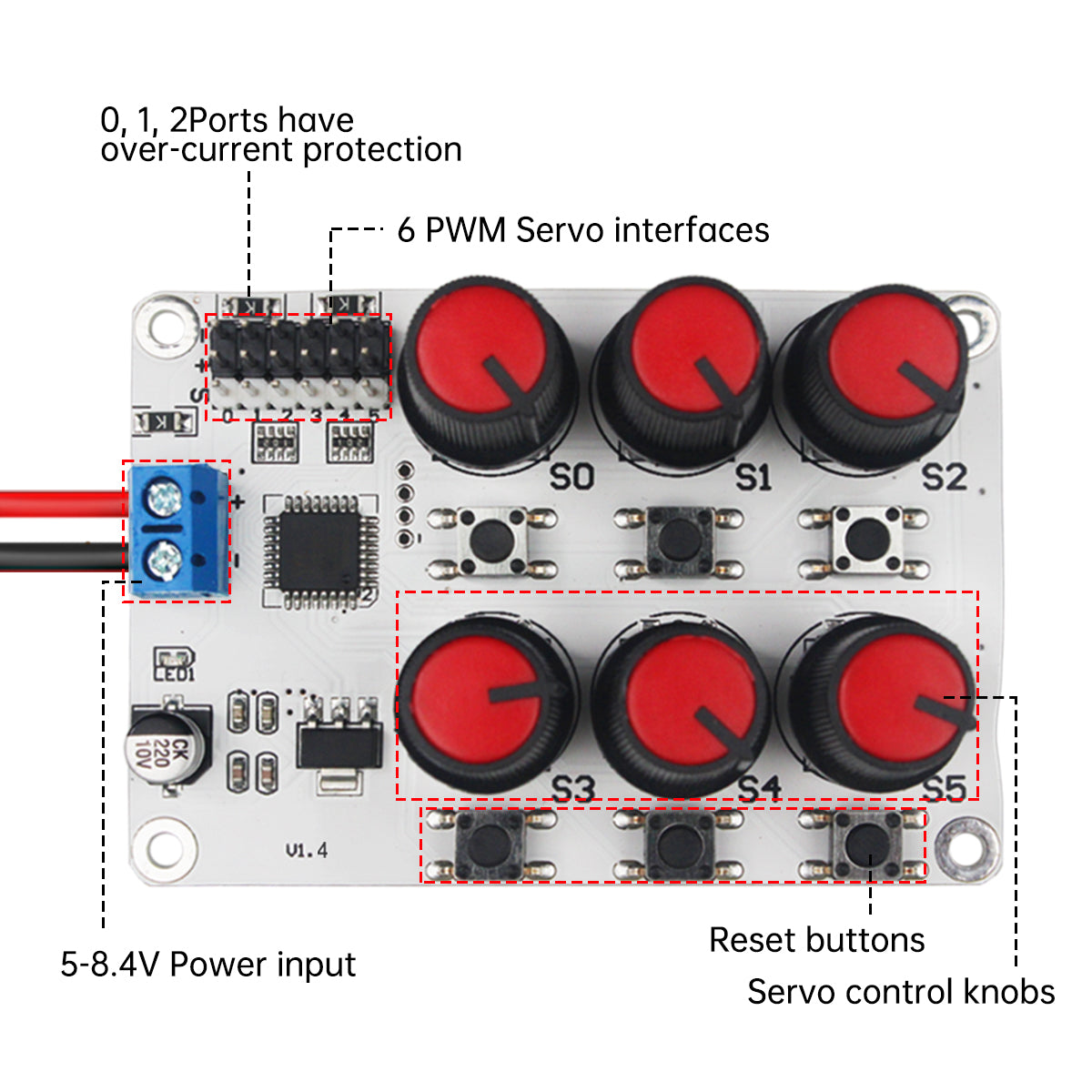

6 Channel Digital Servo Tester & Controller.
Order by Call
𝟔 𝐂𝐡𝐚𝐧𝐧𝐞𝐥 𝐃𝐢𝐠𝐢𝐭𝐚𝐥 𝐒𝐞𝐫𝐯𝐨 𝐓𝐞𝐬𝐭𝐞𝐫 & 𝐂𝐨𝐧𝐭𝐫𝐨𝐥𝐥𝐞𝐫.
Product Parameters
- 1. High-precision potentiometer can control the steering gear in real time.
- 2. Onboard 3-way overcurrent protection interface (0.1.2 interface), which can prevent the steering gear from being burned out by excessive current.
- 3. High-resolution PWM signal, onboard 8-bit MCU, can make the control accuracy higher.
- 4. Support manual steering gear controller / steering gear reset to center, switch by function button
- 5. Accuracy of steering gear controller: 0.09° (refers to the minimum change value of PWM 1us)
- 6. Compatible with two power supply link methods of lithium battery/power adapter. (5-8.4V)
- 7. Onboard 6-way PWM digital servo interface, which can be controlled by high-precision potentiometer.
- 8. The size of the 6-way knob is 76mm*53mm, and the weight is 37g.
How to use:
- Supply power to the controller, the voltage can be 5~8.4V, the specific voltage is subject to the actual use of the servo’s rated voltage;
- The servo is plugged into the 3Pin servo port, + is the positive pole, -is the negative pole, and S is the signal terminal;
- The power-on default potentiometer control mode, the servo rotates synchronously when the knob is turned;
- The button below the knob can switch the mode, press respectively to
"Manual Mode": Knob control.
"Neutral Mode": Return to the center position.
𝟔 𝐂𝐡𝐚𝐧𝐧𝐞𝐥 𝐃𝐢𝐠𝐢𝐭𝐚𝐥 𝐒𝐞𝐫𝐯𝐨 𝐓𝐞𝐬𝐭𝐞𝐫 & 𝐂𝐨𝐧𝐭𝐫𝐨𝐥𝐥𝐞𝐫.
Product Parameters
- 1. High-precision potentiometer can control the steering gear in real time.
- 2. Onboard 3-way overcurrent protection interface (0.1.2 interface), which can prevent the steering gear from being burned out by excessive current.
- 3. High-resolution PWM signal, onboard 8-bit MCU, can make the control accuracy higher.
- 4. Support manual steering gear controller / steering gear reset to center, switch by function button
- 5. Accuracy of steering gear controller: 0.09° (refers to the minimum change value of PWM 1us)
- 6. Compatible with two power supply link methods of lithium battery/power adapter. (5-8.4V)
- 7. Onboard 6-way PWM digital servo interface, which can be controlled by high-precision potentiometer.
- 8. The size of the 6-way knob is 76mm*53mm, and the weight is 37g.
How to use:
- Supply power to the controller, the voltage can be 5~8.4V, the specific voltage is subject to the actual use of the servo’s rated voltage;
- The servo is plugged into the 3Pin servo port, + is the positive pole, -is the negative pole, and S is the signal terminal;
- The power-on default potentiometer control mode, the servo rotates synchronously when the knob is turned;
- The button below the knob can switch the mode, press respectively to
"Manual Mode": Knob control.
"Neutral Mode": Return to the center position.
Watch this video it will give you a clear idea about this product.
