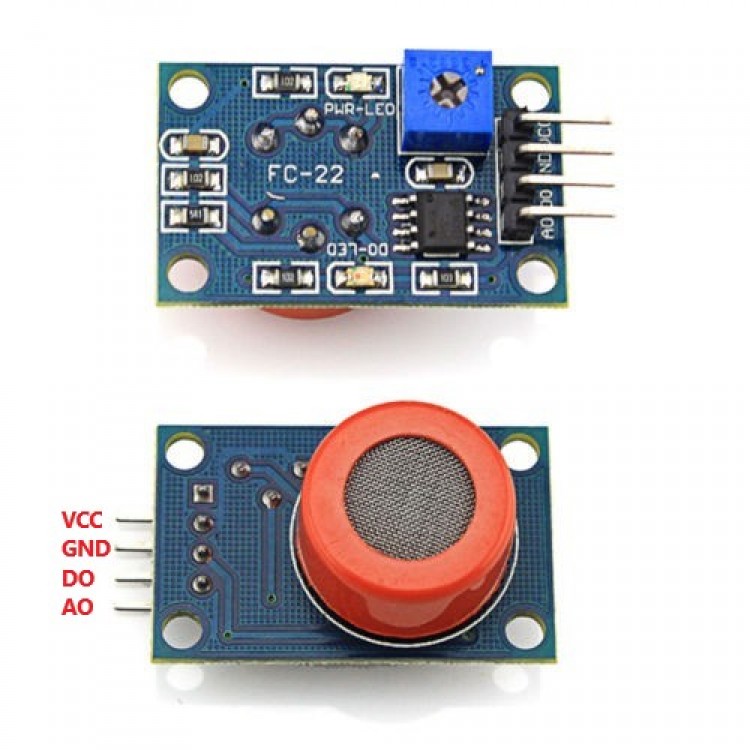

Alcohol Sensor Module (MQ-3)
Product Code: SNM011Category: Sensor Modules
MQ-3 gas sensor detect alcohol When the sensor is present in the environment alcohol vapor,the sensor's conductivity increases with the concentration of alcohol gas in the air.
MQ-3 gas sensor is sensitive material used in clean air, low conductivity tin dioxide (SnO2). When the sensor is present in the environment in which the alcohol vapor , the sensor's conductivity increases with the concentration of alcohol gas in the air increases. Using a simple circuit can be converted to the change in conductivity of the gas concentration with the corresponding output signal. MQ-3 gas sensor with high sensitivity to alcohol , gasoline can resist , smoke , water vapor interference. This sensor can detect various concentrations of alcohol atmosphere , is a low-cost sensors for a variety of applications.
Operating voltage: DC3-5V
Response time:=10s(70% Response)
ReCovery time:=30s(70% Response)
Heating resistance:31O±3O
Heating Current:=180mA
Heating Voltage:5V±0.2V
Heating Power:=900mW
detect Voltage:=15V
Ambient Temperature:-10 to 65
MQ-3 gas sensor is sensitive material used in clean air, low conductivity tin dioxide (SnO2). When the sensor is present in the environment in which the alcohol vapor , the sensor's conductivity increases with the concentration of alcohol gas in the air increases. Using a simple circuit can be converted to the change in conductivity of the gas concentration with the corresponding output signal. MQ-3 gas sensor with high sensitivity to alcohol , gasoline can resist , smoke , water vapor interference. This sensor can detect various concentrations of alcohol atmosphere , is a low-cost sensors for a variety of applications.
Operating voltage: DC3-5V
Response time:=10s(70% Response)
ReCovery time:=30s(70% Response)
Heating resistance:31O±3O
Heating Current:=180mA
Heating Voltage:5V±0.2V
Heating Power:=900mW
detect Voltage:=15V
Ambient Temperature:-10 to 65
Watch this video it will give you a clear idea about this product.
