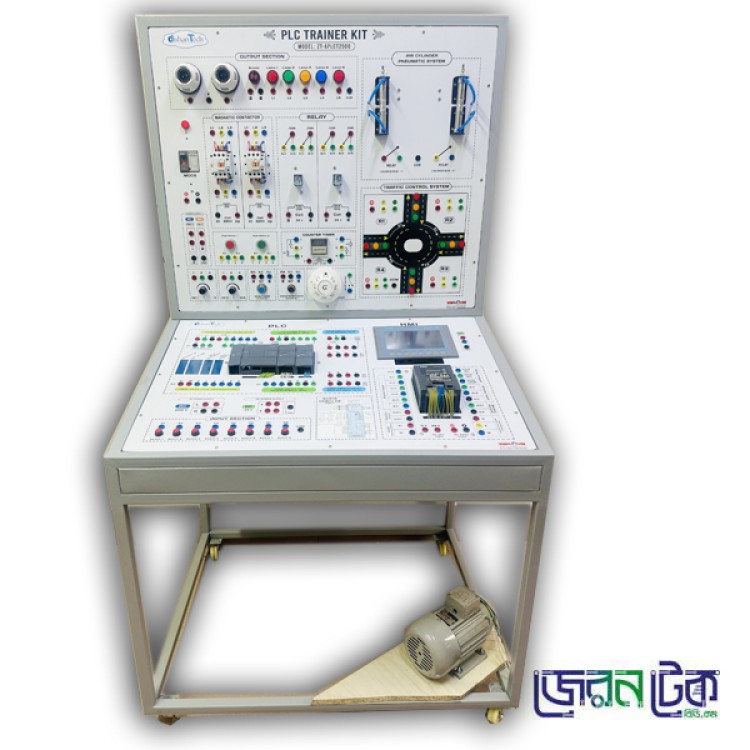

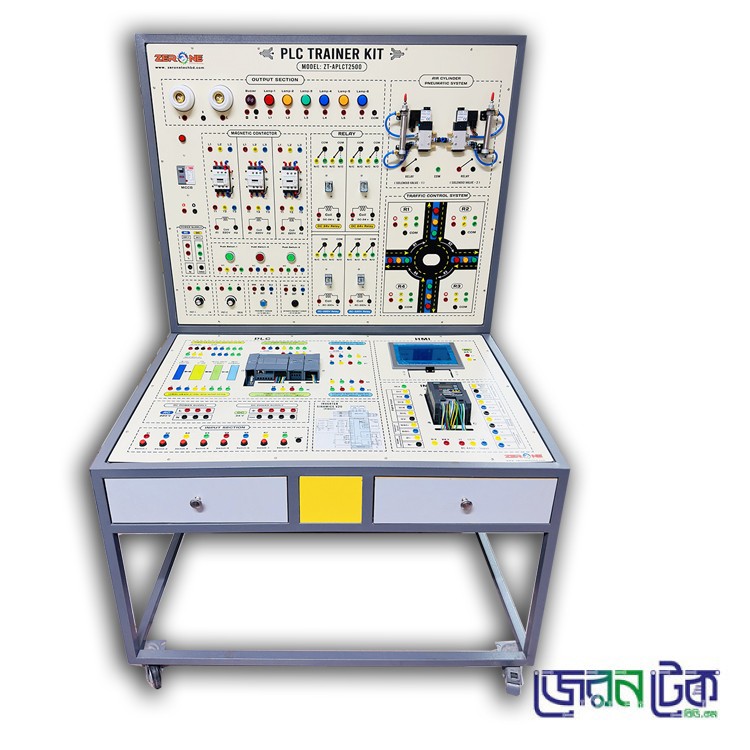

Advance PLC Trainer.
Product Code: ZTS077Category: Electrical & Electronics Lab./EEE Lab
PLC Trainer customized configuration featuring Siemens,Delta PLC, Delta HMI, M-Drive VFD, or a fully Siemens-based and various industrial input/output devices with sensors.
Advance
PLC Trainer.
Product Specification and
Details:
The Advance PLC Trainer shows
students how to use a programmable logic controller. It also works with Tec
Equipment's PLC Process to help students study how to use programmable logic
controllers to control a process. The clearly labeled front panel has all the
input and output connections.
Specification:
|
CPU: Siemens S7 200, Delta
DVP14SS211R or Only Siemens S7 200 PLC Depends on Customer Specification. Module: Siemens Expansion/
Communication Module. HMI: Delta/ Siemens HMI. VFD: 1.5KW M-Drive VFD or Siemens
V20 VFD
-220VA, 24VDC. -Relay Output -Magnetic conductor. -Red Green Yellow Indicator
Output -Buzzer Output. -SMPS (Switch Mode Power
Supply) -Push Switch Input. -Proximity Sensor Input. |
-Optical Sensor Input. -Color Sensor. -Pneumatic System. -Conveyor Belt System.(Optional) -Induction Motor(Optional.) Body
Frame: Steel and powder coating color. Color: Off White Dimension:
30inch*24inch*6inch(Approx.) Table Type and Wheel Movable
System.
|
|
Experiments
that can be done: -Ladder Diagram Experiment. -Switching of lights. -Solo light control. -Traffic Light Control. -Product sensing. -Color Sensing. -Metal - Nonmetal Product
Sensing -Object Detection. -Motor Control Using VFD. -HMI Programming and
Controlling System. -Pneumatic Experiment.
Many types of different
different practical experiments can be done through PLC programming and
simple wiring connection by in this trainer. |
|
Advance PLC Trainer. Product Specification and Details: The Advance PLC Trainer shows students how to use a programmable logic controller. It also works with Tec Equipment's PLC Process to help students study how to use programmable logic controllers to control a process. The clearly labeled front panel has all the input and output connections. | |
Specification: l CPU: Siemens S7 200, Delta DVP14SS211R. l Siemens Expansion/ Communication Module. l Delta/ Siemens HMI. l 1.5KW M-Drive VFD. l 220VA, 24VDC. l Relay Output l Magnetic conductor. l Red Green Yellow Indicator Output l Buzzer Output. l SMPS (Switch Mode Power Supply) l Push Switch Input. l Proximity Sensor Input. l Optical Sensor Input. l Color Sensor. l Pneumatic System. l Conveyor Belt System.
| Body Frame: l Steel and powder coating color. l Color: Off Whitec l Dimension: 30inch*24inch*6inch(Approx.) l Table Type and Wheel Movable System. Experiments that can be done: ü Ladder Diagram Experiment. ü Switching of lights. ü Solo light control. ü Traffic Light Control. ü Product sensing. ü Color Sensing. ü Metal - Nonmetal Product Sensing ü Object Detection. ü Motor Control Using VFD. ü HMI Programming and Controlling System. ü Pneumatic Experiment. Many types of different different practical experiments can be done through PLC programming and simple wiring connection by in this trainer. |
Watch this video it will give you a clear idea about this product.
